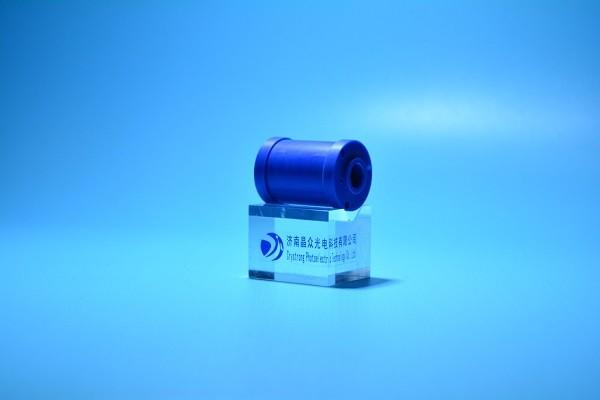

High Repetition Rate BBO Pockels Cell Compact Size 12 X 12 - 2 X 2mm2 Aperture

Name: High Repetition Rate BBO Pockels Cell Compact Size 12 X 12 2 X 2mm2 Aperture
Brand: CRYSTRONG
Price: 1 USD

Brand Name : CRYSTRONG

Place of Origin : JINAN CHINA

MOQ : 1-5

Price : Negotiation

Payment Terms : Net 30 days

Supply Ability : Stock

Delivery Time : 5-30 days upon order quantity

Packaging Details : vacuum packaging , carton

Flatness : λ/10@633nm

Aperture : 12x12mm2 ~ 2x2mm2

Damage threshold : 600MW/cm2,10Hz,1064nm

Wave front : λ/8@633nm

Contact Now

Beta-Barium Borate High Repetition Rate Q-Switch With Compact Size

Product Description:

Typical applications include Q-switching of the laser cavity, laser cavity dumping and coupling light into and form regenerations amplifiers. Low piezoelectric ringing makes BBO Pockels cell attractive for the control of high-power and high repetition rate lasers. Fast switching electronic drivers properly matched to the cell are available for Q-switching, cavity dumping and other applications. BBO Pockels cells are transverse field devices.

Specification:

Aperture	12x12mm² ~ 2x2mm²
Length	20mm,25mm
Flatness	λ/10@633nm
Wave front	λ/8@633nm
Surface quality	10-5 20-10 after coatings
Spectral range	210-2000nm

Clear aperture diameter, mm	2.8	4.6
Crystal size (WxHxL), mm	3x3x20	5x5x20
Capacitance, pF	8	8
Optical transmission, %	98	98
Extinction ratio	>500:1	>500:1
Dimensions, mm	25x60	25x60

Clear aperture diameter, mm	2.8	4.6
Crystal size (WxHxL), mm	3x3x22	5x5x25
Capacitance, pF	10	10
Optical transmission, %	98	98
Extinction ratio	>500:1	>500:1
Dimensions, mm	25x60	25x60

Advantages:

Minimal piezoelectric ringing
Low absorption
Broad transmission ranges from 200nm to 2000nm
Compact size

Shipping Methods:

Air shipping
Express,such as Fedex,UPS
