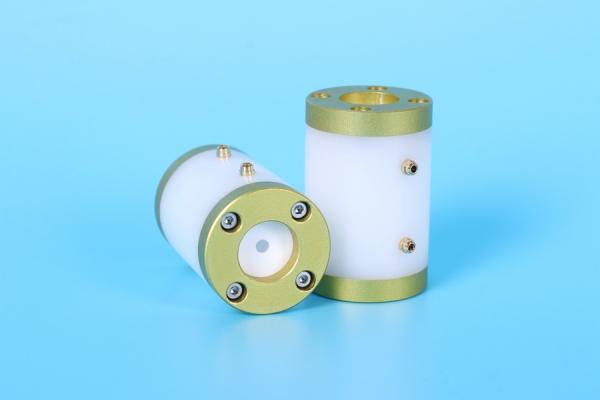

High Power BBO Pockels Cell Plus Repetition Rate For Cavity Dumping

Name: High Power BBO Pockels Cell Plus Repetition Rate For Cavity Dumping
Brand: CRYSTRONG
Price: 1 USD

Brand Name : CRYSTRONG

Place of Origin : JINAN CHINA

MOQ : 1-5

Price : Negotiation

Payment Terms : Net 30 days

Supply Ability : Stock

Delivery Time : 5-30 days upon order quantity

Packaging Details : vacuum packaging , carton

ADVANTAGE : Low absorption

APPLICATION : Beam chopper

DELIVERY : Professional logistic agent

FLATNESS : λ/8 at 633nm

FINISH : 20-10

CHAMFER : ≤0.2mmx45°

Contact Now

China High-Power And Plus Repetition Rate β-BaB2O4 BBO Pockels Cell For Cavity Dumping

Product Description:

BBO Pockels cells are transverse field devices. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length, therefor, smaller aperture, lower quarter-wave voltage, besides, double crystal design, which has lower quarter-wave voltage, is widely used to work in half-wave mode with fast switching times.

Advantages:

Broad transmission ranges from 200nm to 2000nm
Compact size

Specifications:

Flatness	λ/8 at 633nm
Parallelism	≤20 arcsec
Finish	20-10
perpendicularity	≤5 arcmin
Angle tolerance	≤± 0.25°
Dimension tolerance	± 0.1mm
Aperture	90% of full caliber
Chamfer	≤0.2mmx45°
Chip	≤0.1mm
Quality guarantee	one year under proper use.

Application:

Cavity dumping
Beam chopper

Packaging & Delivery:

Prompt deliver at the very day.
Sophisticated and professional logistic agent.
Well-trained and disciplined packing team.

After-sale service:

Any questions or problems after receiving the product,

please feel free to contact us.

lisa@crystrong.com

Problems would be solved for you immediately.
